zooky08

az supporter

Joined: Fri Nov 27, 2009 10:30 pm
Posts: 3426
Location: imbil/gympie. qld
Vehicle: 03 Jimny

Posted: Wed Jan 23, 2013 8:13 pm

thats stick for sure.

_________________
03 Jimny 30 km2s 75mm lift f&r locked winch

31zook

Joined: Tue Mar 24, 2009 10:30 pm
Posts: 9242
Location: maito
Vehicle: <3 Edna <3

Posted: Wed Jan 23, 2013 9:22 pm

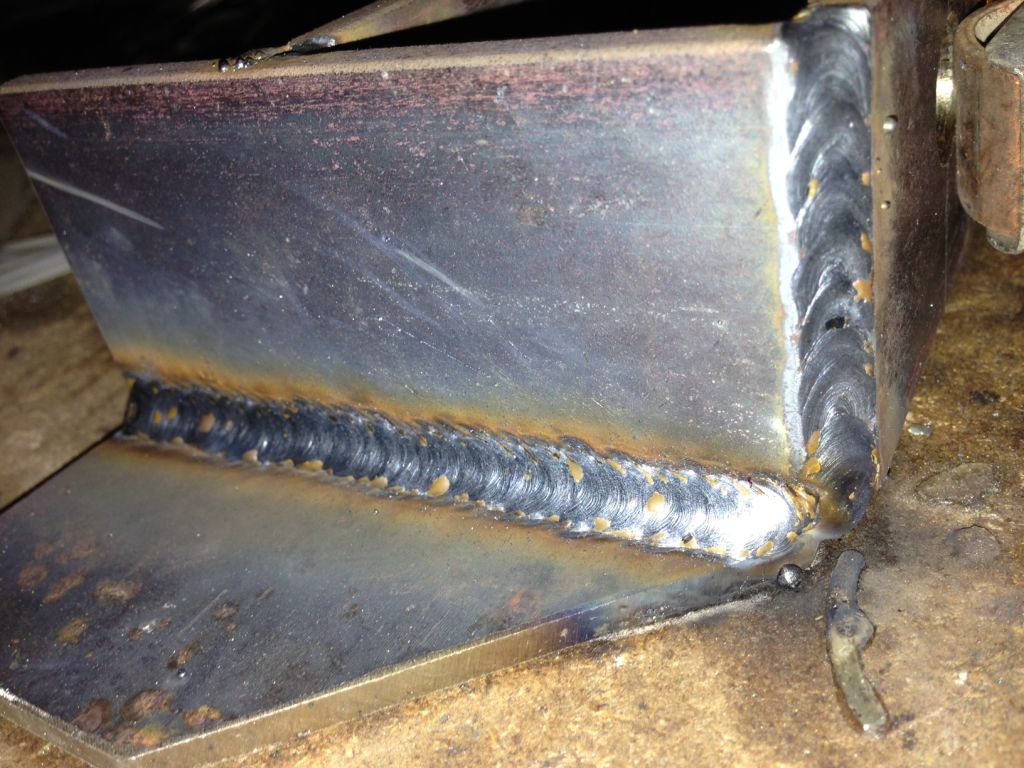

0.9mig.

It's 2 bits of 10mm plate and all my work wants to supply is a 200Amp 240V welder.

So to get enough heat into it I turn it up to 11, and pull the wire back enough to pool. It's slow going but they fall off anyway :lol:

It's a 200lb fire extinguisher bottle bracket that goes onto the back of a D11T.

Parry

Joined: Fri Oct 05, 2012 9:14 pm
Posts: 171
Location: Newcastle
Vehicle: Getting parts atm

Posted: Sun Feb 03, 2013 5:49 am

Making up some link mounts, Lincoln 180 mig is well worth it's money, top little mig

driftke70

Joined: Thu Feb 07, 2013 3:29 pm
Posts: 74
Location: buderim
Vehicle: jimny/gsxr600

Posted: Sat Feb 09, 2013 10:43 am

some of the stuff i have done on my drift corolla, all mig.

heaps of other little things i cant find pics

31zook

Joined: Tue Mar 24, 2009 10:30 pm
Posts: 9242
Location: maito
Vehicle: <3 Edna <3

Posted: Mon Feb 11, 2013 1:44 pm

5 link rear end!

what is the specs on the rolla? My Ksev is awaiting a 1UZ swap

driftke70

Joined: Thu Feb 07, 2013 3:29 pm
Posts: 74
Location: buderim
Vehicle: jimny/gsxr600

Posted: Mon Feb 11, 2013 7:29 pm

it has a gen3 3sgte from an st205, few mods here and there, f series diff, trd 2 way, tokico hts102's, custom coil overs in the front with custom control arms and caster arms and stuff, full weld in 6 point cage, fully seam welded, recaros, w box, 14x9 - 21 allround, cant really think of anything else off the top of my head.

http://www.youtube.com/watch?v=KDf0KEAe ... qQ&index=2

SierraDan

az supporter

Joined: Fri Feb 04, 2011 10:55 pm
Posts: 9347
Location: Newcastle
Vehicle: G13BB Jimny

Posted: Mon Feb 11, 2013 8:12 pm

Think ive seen that one. Is it painted blue now?

_________________
mlm

DarkHorse

az supporter

Joined: Wed Apr 14, 2010 11:30 pm
Posts: 5413
Vehicle: 08 SV650

Posted: Mon Feb 11, 2013 8:38 pm

One of my better efforts from today:

Still a bit irregular, but I'm definitely getting better.

driftke70

Joined: Thu Feb 07, 2013 3:29 pm
Posts: 74
Location: buderim
Vehicle: jimny/gsxr600

Posted: Mon Feb 11, 2013 8:40 pm

nice one

nar its still the same haggard beige and yellow, i cant bring myself to paint it, too much charm

jimmy91

az supporter

Joined: Sun Aug 12, 2012 10:49 am
Posts: 385
Vehicle: 2012 jimny

Posted: Wed Apr 10, 2013 8:32 pm

inside of a fuel tanker on a bulk head at work

055ETH

Joined: Sun Oct 23, 2011 9:05 pm
Posts: 383
Location: Brisbane
Vehicle: 94 Sierra,99 gv, s13 Silvia

Posted: Thu Apr 11, 2013 7:34 pm

the beige ke70 i have watched since you started it.. willy wag tail... i helped mercer build his ls1via and studs n scotty build their cars

Xtreme

Joined: Tue Apr 16, 2013 11:49 am
Posts: 275
Vehicle: hkbjk

Posted: Fri Apr 26, 2013 9:10 am

A few welds and jobs I have done

You do not have the required permissions to view the files attached to this post.

OVERKILL ENG

Joined: Sun Apr 15, 2012 8:47 pm
Posts: 60
Vehicle: LWB back to old school

Posted: Tue Jun 25, 2013 12:10 pm

Some welding we did on some nine inch diffs with hummer portals.. And some spider nines for a rangie we are building..

You do not have the required permissions to view the files attached to this post.

appsie

Joined: Sun Apr 20, 2008 11:30 pm
Posts: 2225

Posted: Tue Jun 25, 2013 1:20 pm

Critical Energy

Joined: Sat Feb 23, 2013 1:37 pm
Posts: 179
Location: Sydney
Vehicle: Suzuki Stockman '85 1litre

Posted: Tue Jun 25, 2013 9:33 pm

OVERKILL ENG wrote:

Some welding we did on some nine inch diffs with hummer portals.. And some spider nines for a rangie we are building..

Awesome work

OVERKILL ENG

Joined: Sun Apr 15, 2012 8:47 pm
Posts: 60
Vehicle: LWB back to old school

Posted: Thu Jun 27, 2013 8:47 pm

Some chromoly engine mounts I made today for our new Zook build

Attachment:


You do not have the required permissions to view the files attached to this post.

31zook

Joined: Tue Mar 24, 2009 10:30 pm
Posts: 9242
Location: maito
Vehicle: <3 Edna <3

Posted: Fri Aug 02, 2013 8:39 am

20mm-10mm plate, 10mm fillet, 1.2 metalcore wire, preheated, one run.

1 run for a complete loop.

Critical Energy

Joined: Sat Feb 23, 2013 1:37 pm
Posts: 179
Location: Sydney
Vehicle: Suzuki Stockman '85 1litre

Posted: Fri Aug 02, 2013 7:43 pm

31zook wrote:

20mm-10mm plate, 10mm fillet, 1.2 metalcore wire, preheated, one run.

1 run for a complete loop.

Chassis extension?

suzkboy

az supporter

Joined: Mon Oct 12, 2009 10:30 pm
Posts: 270
Location: South Australia

Posted: Sat Aug 03, 2013 1:43 am

These are some bits I have weldee up at home on a cig 160 tig welder. The dump pipe is a combination of 2 1/4 and 1 1/4 inch pipe. The plenum is that box section which is 2mm stainless on to a 6mm plate with 4 2" holes with ppipe and flanges all welded on.

You do not have the required permissions to view the files attached to this post.

zooky08

az supporter

Joined: Fri Nov 27, 2009 10:30 pm
Posts: 3426
Location: imbil/gympie. qld
Vehicle: 03 Jimny

Posted: Sat Aug 03, 2013 4:58 pm

Some welds I did the other day.

Not really a awesome weld I dont think but here is a tig weld I did on my first day at tafe on the tig.

_________________
03 Jimny 30 km2s 75mm lift f&r locked winch

31zook

Joined: Tue Mar 24, 2009 10:30 pm
Posts: 9242
Location: maito
Vehicle: <3 Edna <3

Posted: Sun Aug 04, 2013 12:47 pm

Critical Energy wrote:

Chassis extension?

D10T fender stiffeners.

The plate I add to the fender weighs 78kgs by itself... That's as much as a Sierra chassis lol

Asps91

Joined: Mon Apr 08, 2013 2:23 pm
Posts: 120
Location: Sydney
Vehicle: Suzuki jimny, WT sierra, GTR.

Posted: Fri Aug 09, 2013 2:38 pm

For someone like me with limited knowledge of welding.... Some of these welds look like porn. Anyone want to do a tiny bit of welding for my sierra :lol:

for a fee of course!

monley

az supporter

Joined: Wed Nov 24, 2010 7:58 am
Posts: 11092
Location: Mandurah.W.A.
Vehicle: 84 LWB NT

Posted: Fri Aug 09, 2013 8:50 pm

Nice welding Joshy!

Anyone here done the MMAW AS/ME9, 2G 3G, 12mm plate test? I did mine this week and by shit is it a hard weld test. Took me 3 attempts to just past visual on each test coupon. Didn't bother taking pics as stick welding doesn't look all the great at the best of times :lol:

_________________
Tell my arse, he actually gives a crap!

Fatzook

az supporter

Joined: Sat Oct 27, 2007 11:30 pm
Posts: 14977
Location: The Hills
Vehicle: Vitara, NGV

Posted: Mon Aug 12, 2013 6:14 pm

Not awesome or anything. Just some welds on toob sliders.

_________________
2013 GV
1998 SV420 ute

Dcraw

Joined: Fri Sep 07, 2012 3:57 pm
Posts: 112
Location: Brisbane
Vehicle: suzuki sierra

Posted: Mon Aug 12, 2013 6:45 pm

Whens my apprenticeship begin Fatzook!! pompoms

Rusho

Tubby Elfsdong

Joined: Sun Aug 02, 2009 11:30 pm
Posts: 6501
Location: Northside, Brisbane
Vehicle: Coily Sierra

Posted: Mon Aug 12, 2013 6:49 pm

It's got spatter on it :roll:

_________________
Shep is a closet jimny lover!!!!

Fatzook

az supporter

Joined: Sat Oct 27, 2007 11:30 pm
Posts: 14977
Location: The Hills
Vehicle: Vitara, NGV

Posted: Mon Aug 12, 2013 9:31 pm

Dcraw wrote:

Whens my apprenticeship begin Fatzook!! pompoms

ASAP. There is a coily here that you can go nuts on. Start with the 9". Armsup

_________________
2013 GV
1998 SV420 ute

Dcraw

Joined: Fri Sep 07, 2012 3:57 pm
Posts: 112
Location: Brisbane
Vehicle: suzuki sierra

Posted: Mon Aug 12, 2013 10:02 pm

Fatzook wrote:

Dcraw wrote:

Whens my apprenticeship begin Fatzook!! pompoms

ASAP. There is a coily here that you can go nuts on. Start with the 9". Armsup

Done and Done, just give me a time and a place :rambo:

suzkboy

az supporter

Joined: Mon Oct 12, 2009 10:30 pm
Posts: 270
Location: South Australia

Posted: Wed Aug 14, 2013 8:39 pm

Not so much a close up of my awesome welds but here is the complete exhaust I made for my ke35 corolla. A full 2 1/4" dump pipe with 1 1/2" off the waste gate into a 2 1/2" mandrel bent system

You do not have the required permissions to view the files attached to this post.

atari4x4

az supporter

Joined: Mon Dec 11, 2006 10:30 pm
Posts: 34843
Location: East Radelayed
Vehicle: SV420+SV620 Vitara's

Posted: Wed Aug 14, 2013 8:51 pm

nice work ravedave, must be getting close now?

no cat?

_________________
You're just hating because you don't understand
